• Product Description
    Company Info.
    Processing customization:
    Yes
    Content ≥:
    17 %
    Material:
    ceramic
    Density:
    0.5 g/cm3
    Model:
    50mm

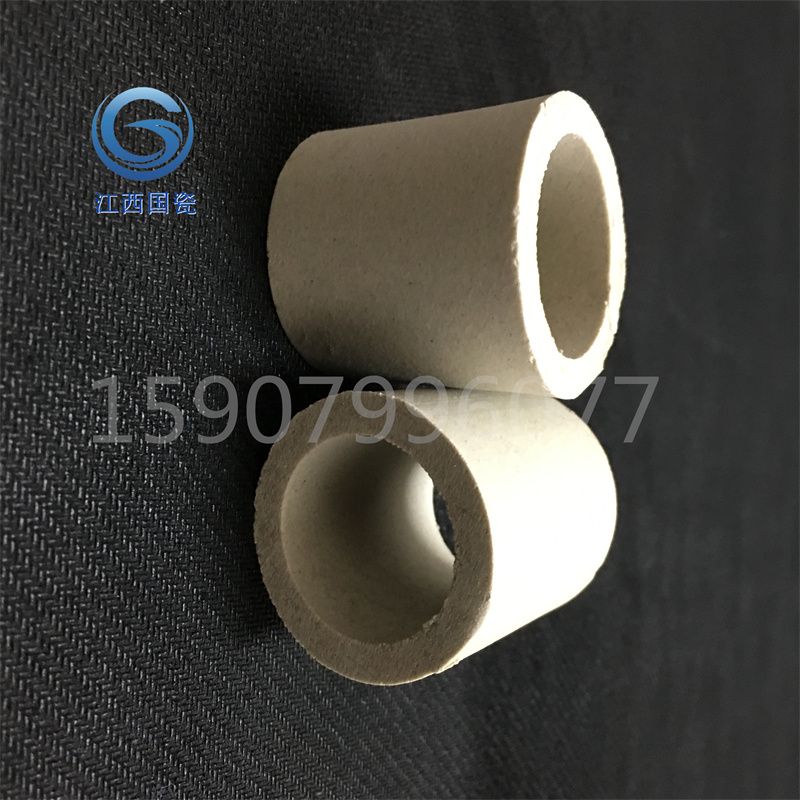

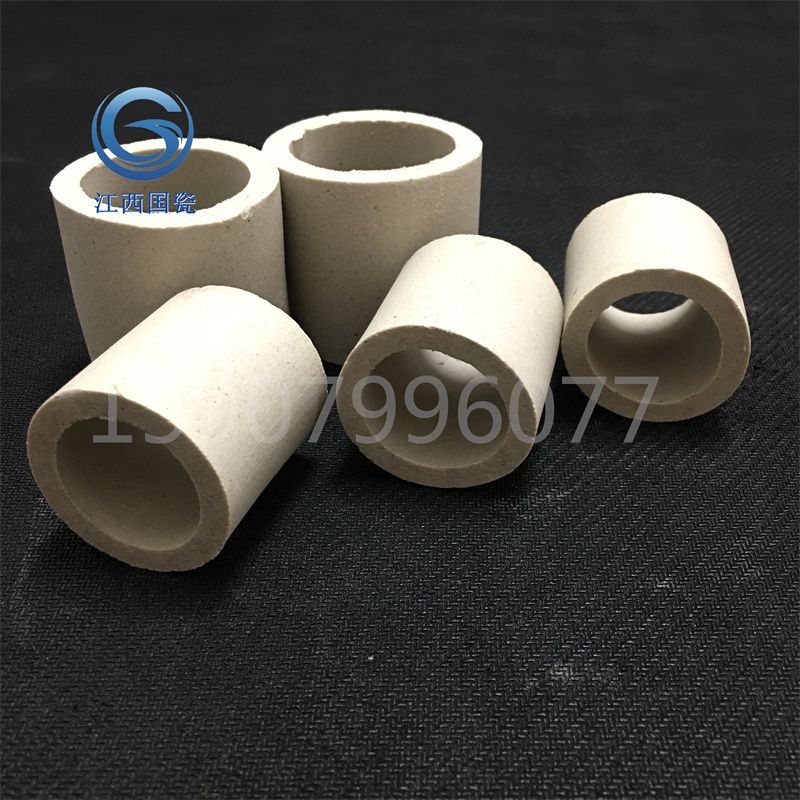

    Ceramic Raschig ring packing structure characteristics:
          CeramicRaschig ring is a kind of bulk packing with fixed geometry which came out early. It is simple in shape, and its height is equal to the size of its diameter. Raschig rings with large size (above 100MM) are generally filled in a regular way by whole masonry, while Raschig rings with size below 80mm are generally filled in a random pile way. Ceramic Raschig rings are used in many fields.
     Ceramic Raschig ring packing is a kind of open-hole annular packing with equal height and diameter. Due to its high porosity, large void, large flux and small resistance, gas and liquid in the packed tower can pass freely. The gas and liquid distribution in the packing layer is relatively good, especially the inner surface of the packing ring is easy to be wetted by liquid, so that the inner surface can be utilized. Therefore, it not only has higher throughput and lower pressure drop, but also has high mass transfer and separation efficiency.
     The Raschig ring packed into the column, regardless of its orientation, spills liquid onto the packing, some along the outer wall flow, some along the inner wall flow. In this way, the liquid dispersion is increased, and the utilization rate of the inner surface of the filler is improved.
    Porcelain Raschig ring filler has excellent acid and heat resistance, and can withstand all kinds of inorganic acids, acids and solvents except qin hydrofluoric acid. Can be used in various high and low temperature occasions, application range. Can be used in chemical industry, metallurgy, gas, oxygen and other industries drying tower, absorption tower, cooling tower, washing tower, regeneration tower, etc.

    Name(chinese)
    Name(English)
    Jiangxi Guoci Environmental Protection Technology Co., Ltd.
    China credit code
    Identity Verification
    Registered Capital
    10,000 CNY
    Operating term
    2017-08-15 ~ ****
    Product Category
    honeycomb ceramicceramic filter materialsceramic fillerCeramic saddle ring packingAlumina foam ceramicBrown corundum ceramic membrane filter tube
    Company Registered Address:
    Wugong Mountain Middle Avenue, Economic Development Zone, Pingxiang City, Jiangxi Province
    Address
    Jiangxi Pingxiang, China
    Nearby port
    Shanghai,Ningbo,Shenzhen,Guangzhou
    Jiangxi Guoci Environmental Protection Technology Co., Ltd. is located in the industrial and economic town of western Jiangxi,'China's Industrial Ceramics Capital-Pingxiang City.' It is close to Changzhutan and connected to Changzhutan and Fujian. It has developed and convenient location advantages. Focus on environmentally friendly ceramics, honeycomb ceramics, foam ceramics, ceramic membrane filter materials, chemical fillers, petrochemical additives, environmental protection equipment ceramics, plastics, stainless steel ball rings, Raschig rings, square saddle rings, different saddle rings, step rings, garlands, ball park, Lantec and other environmentally friendly defogging, washing, absorption, regeneration, desulfurization and other devices, as well as PP, RPP, PVDF plastic orifice plate corrugated fillers, stainless steel wire corrugated fillers, double stainless steel wire mesh corrugated fillers, Stainless steel perforated plate corrugated packing, ceramic corrugated packing, light porcelain reinforced porcelain structured corrugated packing, all-ceramic structured packing combination chain packing, light porcelain structured packing, oilfield separator agglomerated packing, inclined plate packing, inert alumina ceramic balls, open-hole ceramic balls, proppant, honeycomb catalyst, regenerator, activated alumina, honeycomb ceramics, 3A, 4A, 5A, 13X molecular sieves, activated carbon and chemical tower internals grooved disc gas-liquid distributor, hump support plate, liquid collector, tubular distributor, Packing support pressure grids, wire mesh demister, baffle demister and other products. Activated alumina, molecular sieves, catalysts, activated carbon, various types of plastics and ceramics, metal random piles and structured corrugated packings, alumina ceramic balls, chemical tower internals, three-phase separator packing support, molecular sieve honeycomb ceramics, rare earth porcelain sand filter media, biological porous ceramite filter media, ceramic filters, honeycomb ceramic regenerator, honeycomb proppant protectants, flat ceramic membranes and components, ceramic membrane filter tubes, microporous ceramic filter plates, foam ceramic filter discs, The research and development and sales of vegetable glue and other scientific and technological materials; it is a comprehensive enterprise integrating engineering design, engineering installation, and engineering operation management services. The company is committed to consulting, designing and general contracting of environmental pollution control projects, involving industrial water treatment and domestic sewage treatment. It has high-end technology for effective management of high-concentration wastewater, river ecological restoration, and system membrane ultrafiltration equipment. The company will adhere to the principles of putting sincerity as the foundation and user first, make friends from all over the world, and cooperate with customers with excellent product quality and after-sales service to contribute to creating a clear and blue sky in the world and create a better future for environmental protection.
    Name(chinese)
    Name(English)
    Jiangxi Guoci Environmental Protection Technology Co., Ltd.
    China credit code
    Identity Verification
    Registered Capital
    10,000 CNY
    Operating term
    2017-08-15 ~ ****
    Product Category
    honeycomb ceramicceramic filter materialsceramic fillerCeramic saddle ring packingAlumina foam ceramicBrown corundum ceramic membrane filter tube
    Company Registered Address:
    Wugong Mountain Middle Avenue, Economic Development Zone, Pingxiang City, Jiangxi Province
    Address
    Jiangxi Pingxiang, China
    Nearby port
    Shanghai,Ningbo,Shenzhen,Guangzhou
    Jiangxi Guoci Environmental Protection Technology Co., Ltd. is located in the industrial and economic town of western Jiangxi,'China's Industrial Ceramics Capital-Pingxiang City.' It is close to Changzhutan and connected to Changzhutan and Fujian. It has developed and convenient location advantages. Focus on environmentally friendly ceramics, honeycomb ceramics, foam ceramics, ceramic membrane filter materials, chemical fillers, petrochemical additives, environmental protection equipment ceramics, plastics, stainless steel ball rings, Raschig rings, square saddle rings, different saddle rings, step rings, garlands, ball park, Lantec and other environmentally friendly defogging, washing, absorption, regeneration, desulfurization and other devices, as well as PP, RPP, PVDF plastic orifice plate corrugated fillers, stainless steel wire corrugated fillers, double stainless steel wire mesh corrugated fillers, Stainless steel perforated plate corrugated packing, ceramic corrugated packing, light porcelain reinforced porcelain structured corrugated packing, all-ceramic structured packing combination chain packing, light porcelain structured packing, oilfield separator agglomerated packing, inclined plate packing, inert alumina ceramic balls, open-hole ceramic balls, proppant, honeycomb catalyst, regenerator, activated alumina, honeycomb ceramics, 3A, 4A, 5A, 13X molecular sieves, activated carbon and chemical tower internals grooved disc gas-liquid distributor, hump support plate, liquid collector, tubular distributor, Packing support pressure grids, wire mesh demister, baffle demister and other products. Activated alumina, molecular sieves, catalysts, activated carbon, various types of plastics and ceramics, metal random piles and structured corrugated packings, alumina ceramic balls, chemical tower internals, three-phase separator packing support, molecular sieve honeycomb ceramics, rare earth porcelain sand filter media, biological porous ceramite filter media, ceramic filters, honeycomb ceramic regenerator, honeycomb proppant protectants, flat ceramic membranes and components, ceramic membrane filter tubes, microporous ceramic filter plates, foam ceramic filter discs, The research and development and sales of vegetable glue and other scientific and technological materials; it is a comprehensive enterprise integrating engineering design, engineering installation, and engineering operation management services. The company is committed to consulting, designing and general contracting of environmental pollution control projects, involving industrial water treatment and domestic sewage treatment. It has high-end technology for effective management of high-concentration wastewater, river ecological restoration, and system membrane ultrafiltration equipment. The company will adhere to the principles of putting sincerity as the foundation and user first, make friends from all over the world, and cooperate with customers with excellent product quality and after-sales service to contribute to creating a clear and blue sky in the world and create a better future for environmental protection.
