• Product Description
    Company Info.
    Processing customization:
    No
    Content ≥:
    23 %
    Material:
    ceramic
    Density:
    0.5 g/cm3
    Model:
    19

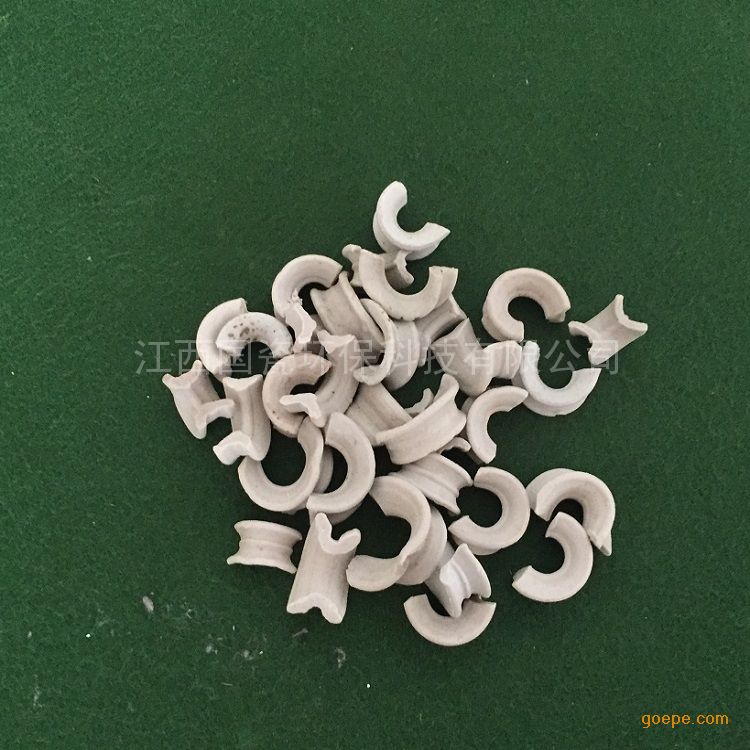

    Ceramic rectangular saddle ring packing is an improved product of ceramic arc saddle ring. It changes the arch appearance on both sides and makes the curvature radius inside different. This structural design overcomes the problem of overlapping and nesting between them. Ceramic torque-saddle ring packing has uniform void distribution, improves fluid distribution, and has better void ratio and lower pressure drop than ceramic Raschig ring.

    Ceramic saddle ring packing, with excellent acid and heat resistance, can and resist the corrosion of various inorganic acids, acids and organic solvents except hydrofluoric acid, and can be used in high temperature or low temperature environment, so it can be widely used in drying tower, absorption tower, cooling tower, washing tower in chemical industry, metallurgical industry, coal natural gas industry, industrial oxygen production industry and so on.

    Ceramic intalox saddle rings are used in two main areas, but this depends on the different performance requirements of the actual application. One field is chemical and petrochemical industry, the other is environmental protection field used in RTO regenerative incinerator and other waste gas treatment environmental protection equipment.

    Technical parameters of ceramic saddle ring packing

    form

    cyclic annular

    colour

    gray

    size

    thickness
    (mm)

    specific surface area

    (m2/m3)

    voidage
    (%)

    dry filler factor
    (m-1)

    bulk specific gravity

    (kg/m3)

    1” (25mm)

    3-4

    253

    73

    85

    688

    3/2’’(38mm)

    4-5

    164

    75

    50

    640

    2” (50mm)

    5-6

    115

    77

    37

    577

    3” (76mm)

    8-10

    95

    75

    24

    623

    chemical composition

    SiO2 + Al2O3

    >92%

    CaO

    <1.0%

    SiO2

    >70%

    MgO

    <0.5%

    Al2O3

    17~23%

    K2O+Na2O

    <3.5%

    Fe2O3

    <1.0%

    Other

    <1%

    physical properties

    water absorption

    <0.5%

    acid resistance

    >99.8%

    voidage

    <1%

    operating temperature

    920~1100℃

    proportion

    2.25~2.35g/cm3
